Using External List Sample

Using External List

First, download the attached survey and import it into your organization:

http://support.dooblo.net/entries/22388573-How-to-import-a-survey

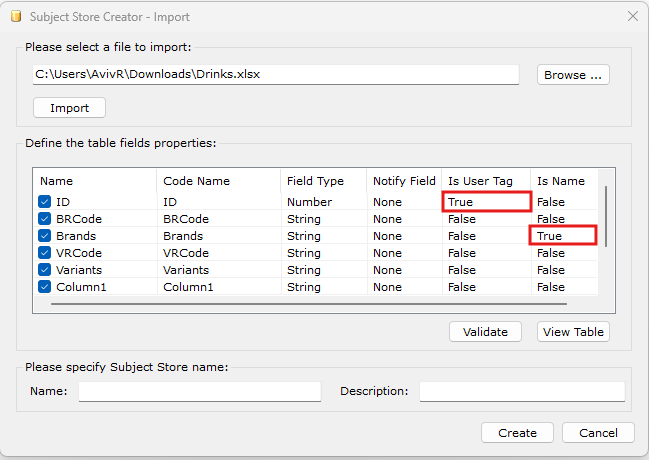

Add the attached subject store called: ‘Drinks’
as a subject store to the survey:

http://support.dooblo.net/entries/22793802-How-to-use-an-excel-file-as-a-data-list-in-a-survey

Make sure you configure the ‘ID’ column as ‘Is User Tag’ and the ‘Brands’ column as ‘IsName’, in this specific example.

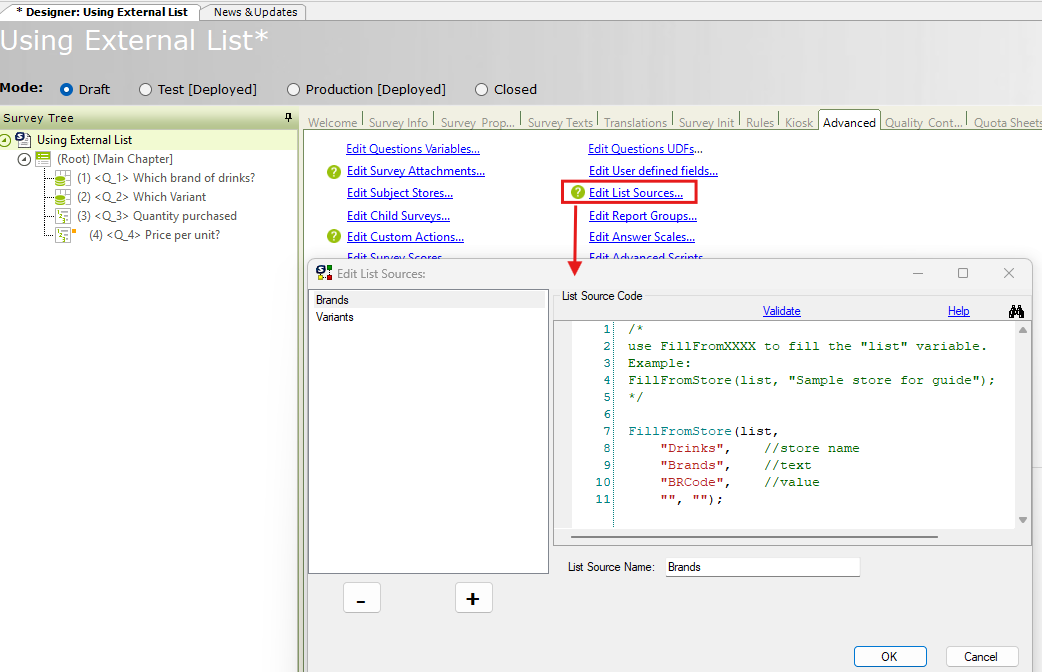

Create a new List Source in the survey “Advanced”.

In our case we created 2 lists: Brands, Variants.


In each list we created a code to pull the specific column from the subject store.

In our example:

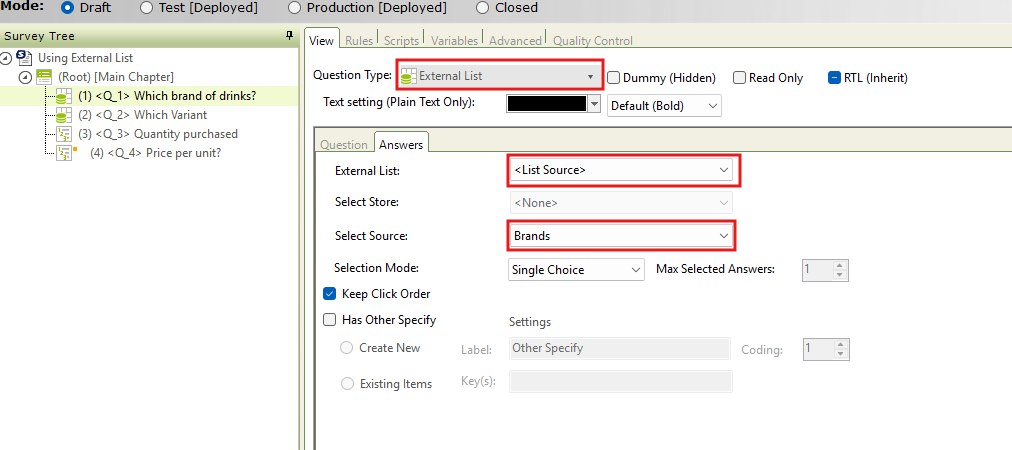

Then, define the Question as ‘External List’.

Define the answer settings according to the question.

In our case we define “External List”: <List Source> and “Select Source”: Brands.


In the last question (Q(4))  we asked: “price per unit?”

We want to create a Validation Rule that will be within the price range. See the price range in the subject store as columns:

‘PriceMin’ and ‘PriceMax’.

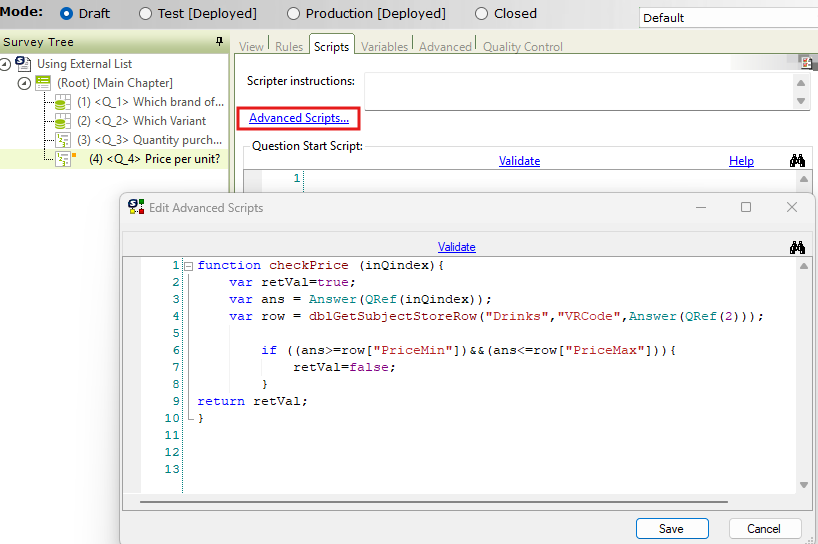

In order to do that we created this Advanced Script:


In this script we used the function: ‘dblGetSubjectStoreRow’  that retrieves a single row from a subject store, see more about this subject here: http://support.dooblo.net/entries/23219682-How-To-retrieve-a-single-row-from-a-subject-store

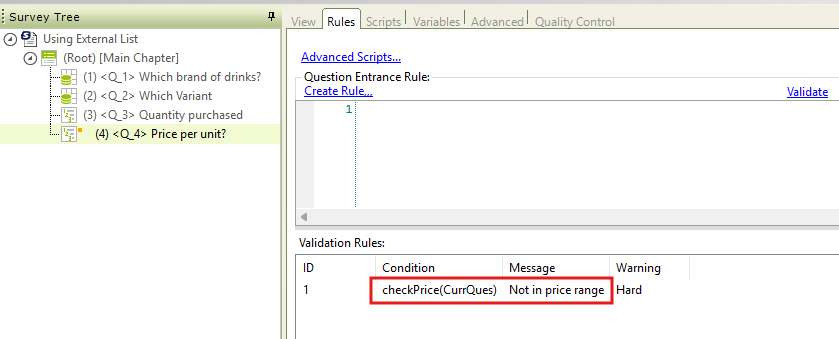

Finally, we entered this Validation Rule to Q(4) Rules:
